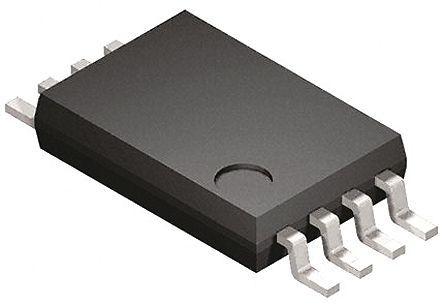

Image is for your reference only,please check specifications for details

LM2904AYPT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC38309169
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifiers - Op Amps Low-PWR Dual 100dB 1.1MHz 20nA Op Amp
Stock Locations:
Availability:
1,840 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.4

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This circuit consists of two independent, high gain operational amplifiers (op amps) that have frequency compensation implemented internally. They are designed specifically for automotive and industrial control systems. The circuit operates from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage.
Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied from the standard 5 V which is used in logic systems and easily provides the required electronic interfaces without requiring any additional power supply.
In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from a single power supply.
**Key Features**
Frequency compensation implemented internally
Large DC voltage gain: 100 dB
Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)
Very low supply current/amplifier, essentially independent of supply voltage
Low input bias current: 20 nA (temperature compensated)
Low input offset current: 2 nA
Input common-mode voltage range includes negative rail
Differential input voltage range equal to the power supply voltage
Large output voltage swing 0 V to ((VCC + ) -1.5 V)

Show

LM2904AYPT Specifications
