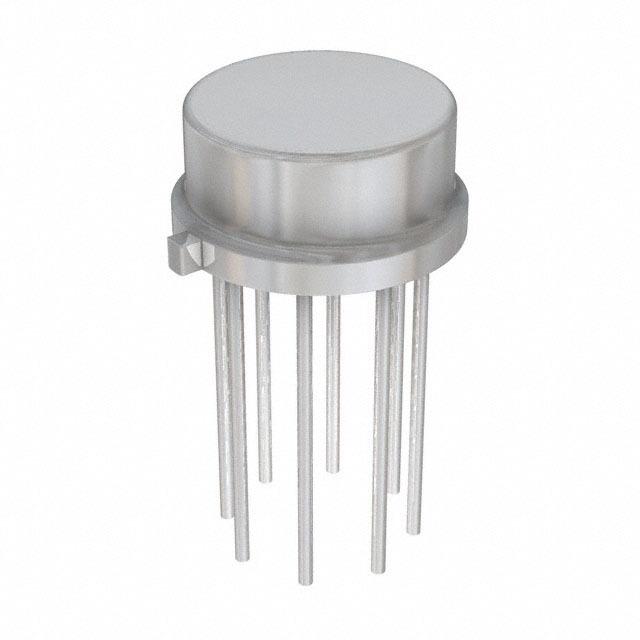

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Single-Supply or Dual Supplies * Wide Range of Supply Voltage * Maximum Rating: 2 V to 36 V * Tested to 30 V: Non-V Devices * Tested to 32 V: V-Suffix Devices * Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA (Typical) Per Comparator * Low Input Bias Current: 25 nA (Typical) * Low Input Offset Current: 3 nA (Typical) (LM139) * Low Input Offset Voltage: 2 mV (Typical) * Common-Mode Input Voltage Range Includes Ground * Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V * Low Output Saturation Voltage * Output Compatible With TTL, MOS, and CMOS
LM293H Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | TO-99-8 |
| Output Current | 16mA @5V |
| Supply Current | 1 mA |
| Number of Channels | 2 Channel |
| Power Dissipation | 660 W |
| Input Offset Voltage | 5 mV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 660 mW |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
