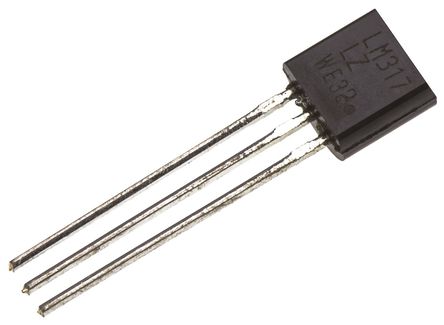

- LM317LZG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC841519
-
Category:Voltage Regulator
-
Package:TO-226-3
-
Datasheet:Datasheet 3D Model
-
Description:Linear Voltage Regulator, Positive Voltage, 40V primary input, 1.2V to 37V/100mA/1 Output, TO-92-3
-
Stock Locations:
-
Availability:37 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.4
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LM317LZG is an adjustable 3-terminal Positive Voltage Regulator capable of supplying in excess of 100mA over an output voltage range of 1.2 to 37V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting and thermal shutdown and safe area compensation, making them essentially blow-out proof. The device serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator or by connecting a fixed resistor between the adjustment and output, the device can be used as a precision current regulator.
- Eliminates stocking many fixed voltages
- Floating operation for high voltage
LM317LZG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-3 |
| Operating Voltage | 3V ~ 40V |
| Current Rating | 100 mA |
| Power Rating | 625 mW |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 40.0V (max) |
| Output Voltage | 1.2V ~ 37V |
| Output Current | 100 mA |
| Supply Current | 10 mA |
| Number of Positions | 3 Position |
| Polarity | P-Channel |
| Thermal Resistance | 83℃/W (RθJC) |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 2.8 V |
| Output Voltage (Max) | 37 V |
| Output Voltage (Min) | 1.2 V |
| Output Current (Max) | 20 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | 4 % |
| Supply Voltage | 40 V |
| Input Voltage | ≤40 V |
| Show | |
| Size-Length | 5.2 mm |
| Size-Width | 4.19 mm |
| Size-Height | 5.33 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
