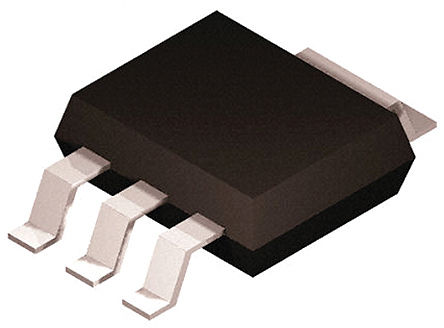

LM317MQDCYR - TI
Manufacturer:
TI
ManyChip's Part#:
MC6753723
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM317MQDCYR Linear Voltage Regulator, Adjustable, 3V to 40V input, 1.25V to 37V/500mA out, SOT-223-4
Stock Locations:
Availability:
6 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM317MQDCYR is a 3-terminal adjustable Positive Voltage Regulator capable of supplying more than 500mA over an output-voltage range of 1.25V to 37V. The LM317M is exceptionally easy to use and requires only two external resistors to set the output. Furthermore, both line and load regulation is better than standard fixed regulators. In addition to having higher performance than fixed regulators, this regulator includes on-chip current limiting, thermal-overload protection and safe- operating-area protection. All overload protection remains fully functional if the ADJUST terminal is disconnected. It is a floating regulator meaning there is no device ground terminal. Quiescent current flows to the load instead of being wasted flowing to ground. Regulated output voltage of hundreds of volts is possible if the maximum input to output differential does not exceed 40V at any time. Device can be used as a floating current source controlled by a single resistor.
Internal short-circuit current limit
Thermal overload protection
Output safe-area compensation
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LM317MQDCYR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Supply Voltage (DC)	40.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	40.0V (max)
Output Voltage	1.25V ~ 37V
Output Current	500 mA
Number of Positions	4 Position
Quiescent Current	3.50 mA
Output Capacitor Type	Capacitor Free
voltage rating	2.00 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	40 V
Input Voltage (Min)	3 V
Output Voltage (Max)	37 V
Output Voltage (Min)	1.25 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.2V ~ 40V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
