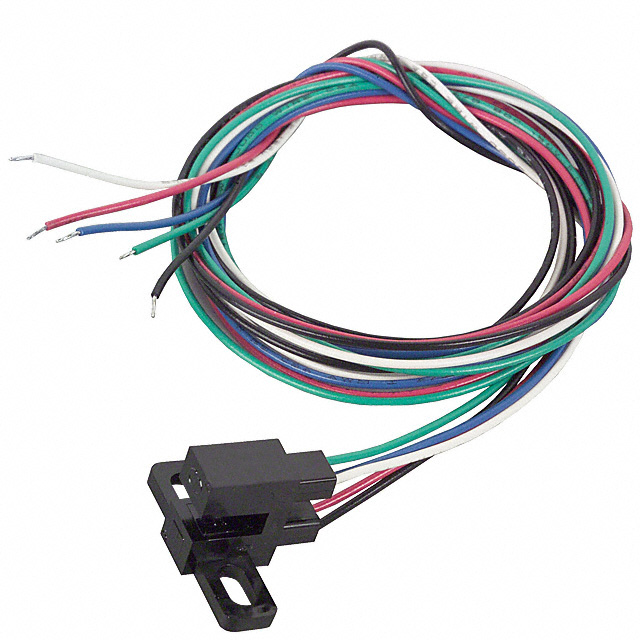

Image is for your reference only,please check specifications for details

OPB931W51Z - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC44202136
Category:
Optical Sensor
Package:
Pre-Wired
Datasheet:
Datasheet 3D Model
Description:
OPTEK TECHNOLOGY OPB931W51Z Transmissive Photo Interrupter, Open Collector, Panel / Chassis, 3.18mm, 1.27mm, 40mA, 2V
Stock Locations:
Availability:
180 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.81

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The OPB930 and OPB940 series of Photologic® photo integrated circuit switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.125” (3.18 mm) wide slot, a user can specify the type and polarity of TTL output, discrete shell material, aperture width and either 0.350” (8.9 mm) long pins (L Series) or 24” (610 mm) AWG, UL listed wire leads (W Series).
Features:
• Choice of aperture size
• Choice of output configurations
• Choice of opaque or IR transmissive shell
• Choice of pins (L) or wires (W)
• 0.125” (3.18 mm) slot width
• 0.320” (8.128 mm) lead spacing for PCBoard (side mounting)
• Data rates to 250 kBaud

Show

OPB931W51Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Number of Pins	5 Pin
Case/Package	Pre-Wired
Output Voltage	2.40 V
Supply Current	15 mA
Forward Voltage	1.7 V
Input Current	15.0 mA
Power Dissipation	300 mW
Rise Time	70 ns
Forward Current	40 mA
Forward Current (Max)	40 mA
Fall Time	70 ns
Fall Time (Max)	70 ns
Fall Time (Max)	70 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	300 mW
Supply Voltage	4.75V ~ 5.25V
	Show
Operating Temperature	-40℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
