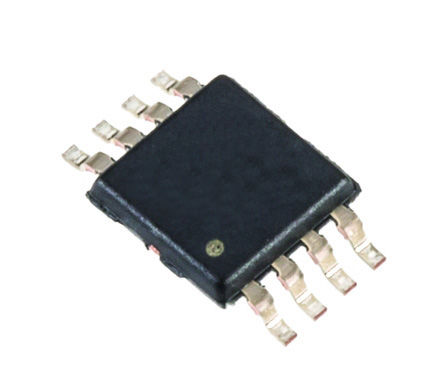

Image is for your reference only,please check specifications for details

LM393ADGKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1724331
Category:
Comparator, Analog Comparator IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM393ADGKR Analogue Comparator, Dual, Differential, 2, 1.3µs, 2V to 36V, ± 1V to ± 18V, VSSOP, 8Pins
Stock Locations:
Availability:
330 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.28

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM393ADGKR is a Dual Differential Comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 to 36V and VCC is at least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM393A device is characterized for operation from 0 to 70°C.
Low supply-current drain independent of supply voltage - 0.4mA per comparator
Common-mode input voltage range includes ground
±36V Differential input voltage range equal to maximum-rated supply voltage
Low output saturation voltage
Output compatible with TTL, MOS and CMOS
Green product and no Sb/Br

Show

LM393ADGKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Voltage (DC)	2.00V (min)
Output Current	20 mA
Supply Current	1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Quiescent Current	800 µA
Input Offset Voltage	2 mV
Input Bias Current	250 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	2V ~ 30V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
