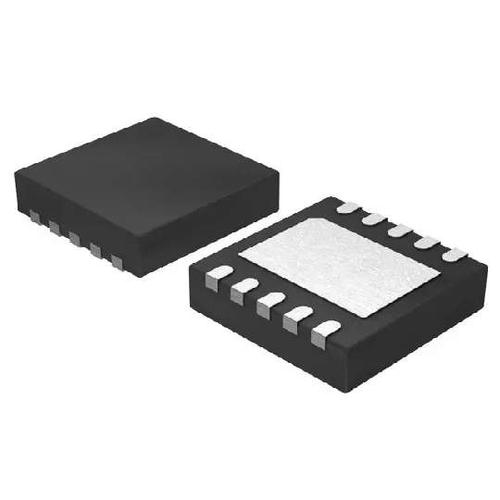

Image is for your reference only,please check specifications for details

LM536013QDSXTQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC11137193
Category:
Voltage Regulator
Package:
WFDFN-10
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 3.55V to 36V Synchronous Step Down Single-Out 3.3V to 6V 1A 10Pin WSON EP T/R
Stock Locations:
Availability:
292 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM536013QDSXTQ1 is a 1A, 36V synchronous, 2.1MHz, automotive step down DC to DC converter in 10 pin WSON package. The LM53601-Q1 synchronous buck regulator devices are optimized for automotive applications providing an output voltage of 3V. Load current up to 1000mA is supported by the LM53601-Q1. Innovative architecture allows the device to regulate a 3.3V output from an input voltage of only 3.8V. The input voltage range up to 36V with transient tolerance of up to 42V eases input surge protection design. An open drain reset output with filtering and delayed release provides a true indication of system status and negates the requirement for an additional supervisory component, saving cost and board space. A seamless transition between PWM and PFM modes ensures high efficiency and superior transient response at all loads. Typical applications include automotive camera, automotive driver assistance systems and automotive body applications.
Wide operating input voltage range from 3.55V to 36V
Fixed switching frequency of 2.1MHz
Low quiescent current of 23µA
Shutdown current of 1.8µA
RESET (complementary) output with filter and delay release
External frequency synchronization
Internal compensation, soft start, current limit and UVLO
Pin selectable forced PWM mode
Automotive grade AEC-Q100 qualified
Operating temperature range from -40°C to 150°C
ESD sensitive device, take proper precaution while handling the device.

Show

LM536013QDSXTQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WFDFN-10
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	1 A
Number of Positions	10 Position
Quiescent Current	23.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Topology	Buck
Switching Current	2.1 A
Input Voltage (Max)	36 V
Input Voltage (Min)	3.55 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	36 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
