LMH5401EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC5334700
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMH5401EVM Evaluation Board, RF Performance Amplifier, Differential O/P, Single/Split Supply, SMA
Stock Locations:
Availability:
295 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 301.75

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

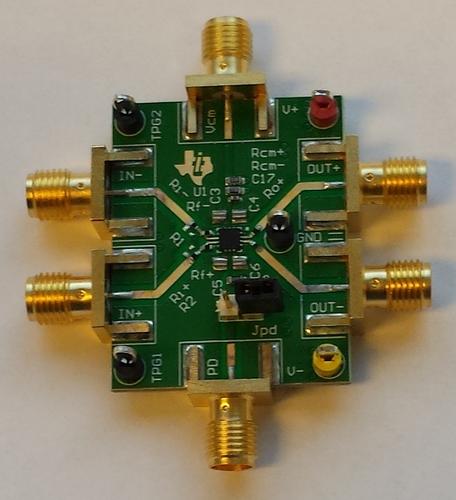

The LMH5401EVM is an Evaluation Module for evaluate the operation and performance of the single LMH5401 amplifier. The board is ready to connect to power, signal source and test instruments through the use of onboard connectors. The EVM comes configured for easy connection with common 50R laboratory equipment on its inputs and outputs. The amplifier is configured for single-ended input with gain of 12dB (4V/V). The board has differential outputs, one for each of the amplifier outputs. It can be easily configured for differential inputs and single- or split-supply operation.
Configured for split-supply operation and easily modified for single supply
Single ended or differential input signals
Fully differential output
Designed for easy connection to standard 50R input/output impedance test equipment
Inputs and outputs include SMA connectors
