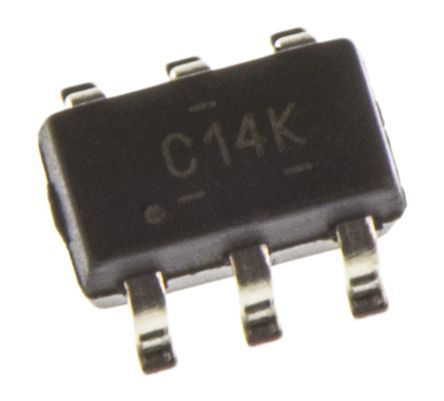

LMR16006YDDCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC30850230
Category:
DC to DC Converter
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4V to 60V Step Down Single-Out 0.8V to 55V 0.6A Automotive 6Pin TSOT-23 T/R
Stock Locations:
Availability:
318 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.67

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMR16006YDDCT is a PWM DC/DC Buck (Step-down) Voltage Regulator with a wide input range of 4 to 60V, it is suitable for a wide range of application from industrial to automotive for power conditioning from an unregulated source. The regulator"s standby current is 28µA in ECO mode, which is suitable for battery operating systems. An ultra low 1µA shutdown current can further prolong battery life. Operating frequency is fixed at 2.1MHz (Y version) allowing the use of small external components while still being able to have low output ripple voltage. Soft-start and compensation circuits are implemented internally, which allows the device to be used with minimized external components. Optimized for up to 600mA load currents. It has a 0.765V typical feedback voltage. The device has built-in protection features such as pulse by pulse current limit, thermal sensing and shutdown due to excessive power dissipation.
Ultralow 28µA standby current in Eco-Mode
1µA Shutdown current
High duty cycle operation supported
Output current up to 600mA
0.7 and 2.1MHz Switching frequency
Internal compensation
High voltage enable input
Internal soft-start
Overcurrent protection
Over-temperature protection
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LMR16006YDDCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Number of Outputs	1 Output
Output Voltage	0.8V ~ 55V
Output Current	600 mA
Number of Positions	6 Position
Quiescent Current	28.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.1 MHz
Topology	Buck
Switching Current	1.2 A
Input Voltage (Max)	60 V
Input Voltage (Min)	4 V
Output Voltage (Max)	55 V
Output Voltage (Min)	800 mV
Output Current (Max)	6 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	4 V
Input Voltage	60 V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
