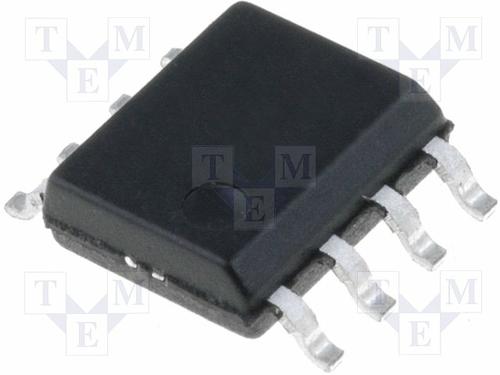

Image is for your reference only,please check specifications for details

IRF7404QPBF - International Rectifier
Manufacturer:
International Rectifier
ManyChip's Part#:
MC364258593
Category:
MOSFET, MOSFET Transistor
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
MOSFET, P-CHANNEL, -20V, -6.7A, 40MOHM, 33.3NC QG, SO-8, Q101 QUALIFIED
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.91

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRF7404QPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2.5 W
Drain to Source Resistance (on) (Rds)	0.06 Ω
Polarity	P-Channel
Power Dissipation	2.5 W
Part Family	IRF7404Q
Threshold Voltage	700 mV
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	6.70 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	5 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
