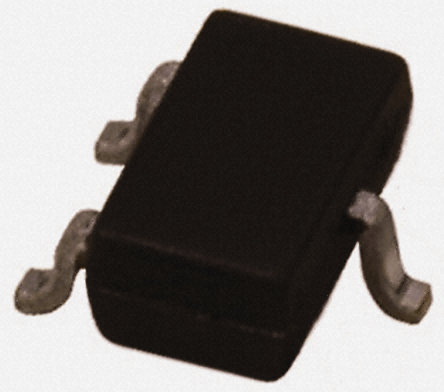

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
PNP resistor-equipped transistor (see “Simplified outline, symbol and pinning”for package details).
FEATURES
• Built-in bias resistors
• Simplified circuit design
• Reduction of component count
• Reduced pick and place costs.
APPLICATIONS
• General purpose switching and amplification
• Inverter and interface circuits
• Circuit driver.

Show

PDTA144EU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-323
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
hFE Min	80
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
