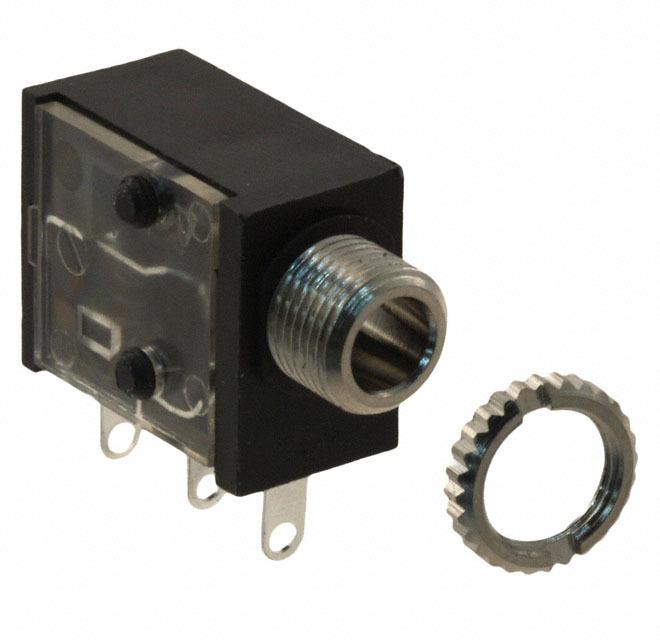

- 35RAPC2AV - Switchcraft / Conxall
-
Manufacturer:Switchcraft / Conxall
-
ManyChip's Part#:MC10426778
-
Category:Audio Connector
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Conn 3.5 ММ однопроводный разъем F 3POS, паяльная версия, через отверстие, 3 терминала, 1 порт <<2>》 ОСНАШЕНИЯ <<3>》 * Трехпроводной миниатюрный телефонный разъем с размером 3.5 ММ <<4>》 Разъемы для пальцев. <<5>》 * Способствует сокращению площади платы... два разъема в одном вертикальном разъеме <<6>》 Форма монтажа. <<7>》 * Идеально подходит для пайки в инфракрасной и конвекционной печи <<8>》 235°C (455°F). <<9>” * Штифты для удержания платы учитывают толщину платы <<10>” Диапазон размеров от 0.050 дюймов до 0.080 дюйма. <<11>” * Стандартный разъем для монтажа с одним винтом <<12>” * Шумоизоляционная защита EMI-RFI, опционально <<13>” * Корпус соответствует стандарту UL 94V-0 по пожарной безопасности <<14>” ПРИМЕНЕНИЯ <<15>” * Мультимедийные рабочие станции <<16>” * Наушники/микрофоны <<17>” * Интерактивный телевизор <<18>” * Аудиосистема <<19>” * Телекоммуникации <<20>” * Медицина <<21>” * Компьютеры <<22>” * Инструментальные устройства
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- FEATURES
- * 3-conductor, miniature phone jack mates with 3.5 mm
- finger plugs.
- * Saves board space...two jacks in a single vertical
- mount footprint.
- * Ideally suited for infra-red and convection oven soldering
- 235°C (455°F).
- * Board retention pins accommodate PC board thickness
- range of .050 inches to .080 inches.
- * Single-screw panel mounting hole is standard.
- * EMI-RFI shield, optional.
- * Housing UL 94V-0 rated against flammability.
- APPLICATIONS
- * Multi-media workstations
- * Headphones/microphone sets
- * Interactive TV
- * Audio
- * Telecommunications
- * Medical
- * Computer
- * Instrumentation
35RAPC2AV Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | - |
| Number of Contacts | 2 Contact |
| Gender | Male |
| Contact Plating | Silver |
| Insulation Resistance | 100 MΩ |
| Orientation | Right Angle |
| Number of Positions | 2 Position |
| Number of Mating Cycles | 500 Cycle |
| Operating Temperature (Max) | 65 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 250 V |
| Maximum Contact Resistance (Max) | 20 mΩ |
| Show | |
| Size-Length | 7.5 mm |
| Size-Height | 11.4 mm |
| Cable Length | 14 mm |
| Housing Color | Black |
| Color | Black |
| Contact Material | Copper Alloy |
| Operating Temperature | -20℃ ~ 65℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
