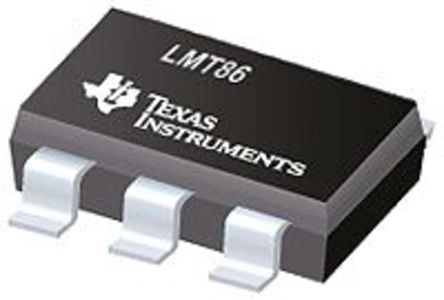

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LMT86DCKT is a precision CMOS Temperature Sensors with an analogue output voltage that is linearly and inversely proportional to temperature. Its features make it suitable for many general temperature sensing applications. A class-AB output structure gives the device, strong output source and sink current capability that can directly drive up to 1.1nF capacitive loads. This means it is well suited to drive an analogue-to-digital converter sample-and-hold input with its transient load requirements.
- 5.4µA Low quiescent current
- Sensor gain of - 10.9mV/°C
- Output is short-circuit protected
- Push-pull output with ±50µA drive capability
LMT86DCKT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SC-70-5 |
| Supply Voltage (DC) | 2.20V (min) |
| Supply Current | 0.009 mA |
| Number of Positions | 5 Position |
| Quiescent Current | 5.40 µA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -50 ℃ |
| Accuracy | ±2.7 ℃ |
| Supply Voltage | 2.2V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.2 V |
| Show | |
| Size-Length | 2.15 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1 mm |
| Operating Temperature | -50℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
