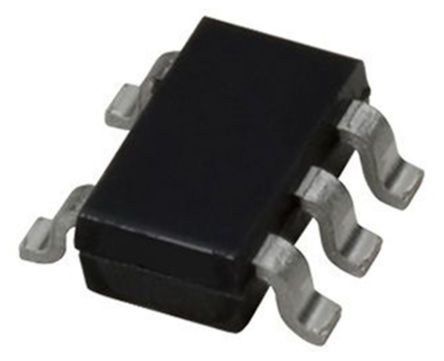

Image is for your reference only,please check specifications for details

LMT87DCKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC6572954
Category:
Temperature Sensor
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMT87DCKT Temperature Sensor IC, Analogue, ± 0.4℃, -50℃, 150℃, SC-70, 5Pins
Stock Locations:
Availability:
977 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.78

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMT87DCKT is an analogue output Temperature Sensor with an analogue output voltage that is linearly and inversely proportional to temperature. Its features make it suitable for many general temperature sensing applications. It can operate down to 2.7V supply with 5.4µA power consumption. A class-AB output structure gives the LMT87 sensor, strong output source and sink current capability that can directly drive up to 1.1nF capacitive loads. This means it is well suited to drive an analogue-to-digital converter sample-and-hold input with its transient load requirements. It has accuracy specified in the operating range of -50 to 150°C. Other features also make the sensor an alternative to thermistors.
3°C Typical accurate
-13.6mV/°C Sensor gain
Output is short-circuit protected
Push-pull output with 50µA source current capability
Footprint compatible with the industry-standard
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LMT87DCKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Voltage (DC)	2.70V (min)
Output Current	7 mA
Supply Current	0.009 mA
Number of Positions	5 Position
Quiescent Current	5.40 µA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
Accuracy	±2.7 ℃
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	2.15 mm
Size-Width	1.4 mm
Size-Height	1 mm
Operating Temperature	-50℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
