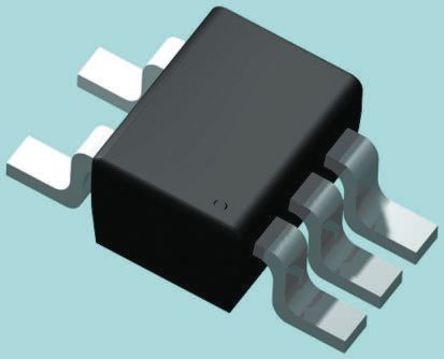

Image is for your reference only,please check specifications for details
- LMV321SN3T1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC7038592
-
Category:Operational Amplifier, OP Amp IC
-
Package:TSOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:LMV321SN3T1G Low Voltage Op Amp, 1MHz CMOS, Rail to Rail, 2.7 to 5V, 5Pin TSOP
-
Stock Locations:
-
Availability:1,413 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.22
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LMV321, LMV358, and LMV324 are CMOS single, dual, and quad low voltage operational amplifiers with rail−to−rail output swing. These amplifiers are a cost−effective solution for applications where low power consumption and space saving packages are critical. Specification tables are provided for operation from power supply voltages at 2.7 V and 5 V. Rail−to−Rail operation provides improved signal−to−noise preformance. Ultra low quiescent current makes this series of amplifiers ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low−side current−shunt measurements. The ultra small packages allow for placement on the PCB in close proximity to the signal source thereby reducing noise pickup.
- Features
- • Operation from 2.7 V to 5.0 V Single−Sided Power Supply
- • LMV321 Single Available in Ultra Small 5 Pin SC70 Package
- • No Output Crossover Distortion
- • Industrial temperature Range: −40°C to +85°C
- • Rail−to−Rail Output
- • Low Quiescent Current: LMV358 Dual − 220 A, Max per Channel
- • No Output Phase−Reversal from Overdriven Input
- • These are Pb−Free Devices
- Typical Applications
- • Notebook Computers and PDA’s
- • Portable Battery−Operated Instruments
- • Active Filters
LMV321SN3T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TSOT-23-5 |
| Halogen Free Status | Halogen Free |
| Supply Current | 130 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Common Mode Rejection Ratio | 50 dB |
| Bandwidth | 1 MHz |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 1.7 mV |
| Input Bias Current | 1 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1 MHz |
| Minimum CMRR Range | 50 dB |
| Supply Voltage | 2.7V ~ 5V |
| Supply Voltage (Max) | 5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.5 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
