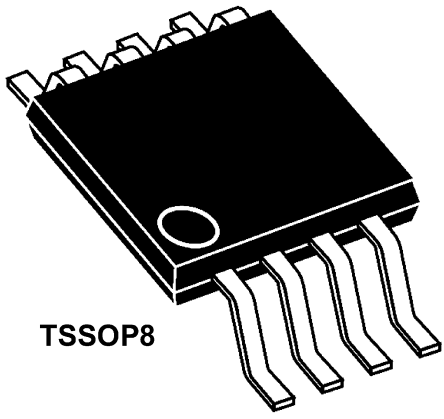

Image is for your reference only,please check specifications for details

LMV358IPT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC8044129
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LMV358IPT Operational Amplifier, Dual, 2 Amplifier, 1.3MHz, 0.45V/µs, 2.7V to 6V, TSSOP, 8Pins
Stock Locations:
Availability:
328 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMV321/358/324 family (single, dual, and quad) answers the need for low cost, general-purpose operational amplifiers. They operate with voltages as low as 2.7 V and feature both input and output rail-to-rail, 145 µA consumption current, and 1 MHz gain bandwidth product (GBP).
With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application.
The LMV321 device is housed in the space-saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.
**Key Features**
Operating range from VCC = 2.7 to 6 V
Rail-to-rail input and output
Extended Vicm (VDD \- 0.2 V to VCC \+ 0.2 V)
Low supply current (145 µA)
Gain bandwidth product (1 MHz)
ESD tolerance (2 kV)

Show

LMV358IPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Output Current	48 mA
Supply Current	162 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	95 dB
Bandwidth	1.3 MHz
Slew Rate	450 mV/μs
Gain Bandwidth Product	1.3 MHz
Input Offset Voltage	100 µV
Input Bias Current	16 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.3 MHz
Minimum CMRR Range	65 dB
Supply Voltage	2.7V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	4.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
