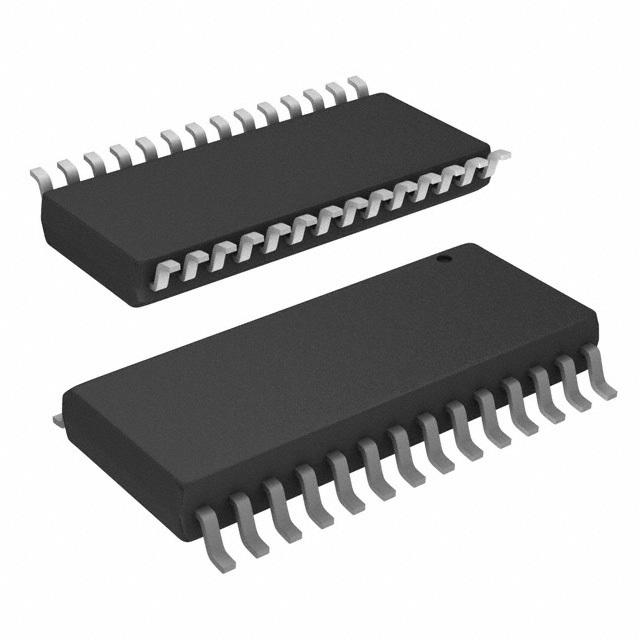

DAC7624UB - TI
Manufacturer:
TI
ManyChip's Part#:
MC46290004
Category:
Digital to Analog, DAC IC
Package:
SOIC-28
Datasheet:
Datasheet 3D Model
Description:
Digital to Analog Converter 12Bit Quad Voltage Output Digital-to-Analog Converter DAC 4CH R-2R 12Bit 28Pin SOIC Tube
Stock Locations:
Availability:
257 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.92

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC7624 and DAC7625 are 12-bit quad voltage output digital-to-analog converters with guaranteed 12-bit monotonic performance over the specified temperature range. They accept 12-bit parallel input data, have double-buffered DAC input logic (allowing simultaneous update of all DACs), and provide a readback mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H (DAC7624) or to a zero-scale of 000H (DAC7625). The DAC7624 and DAC7625 can operate from a single +5V supply or from +5V and 5V supplies.
Low power and small size per DAC make the DAC7624 and DAC7625 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control. The DAC7624 and DAC7625 are available in a 28-pin plastic double-wide or a 28-lead SOIC package, and offer guaranteed specifications over the -40°C to +85°C temperature range.

Show

DAC7624UB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Operating Voltage	4.75V ~ 5.25V
Number of Outputs	4 Output
Supply Current	-1.60 mA
Number of Channels	4 Channel
Number of Bits	12 Bit
Power Dissipation	0.02 W
Sample Rate	100 ksps
Power Consumption	15.0 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	20 mW
Number of DACs	4 DAC
	Show
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
