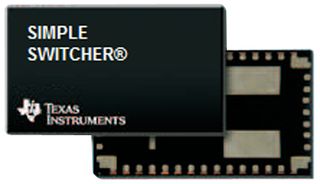

Image is for your reference only,please check specifications for details

LMZ31506RUQR - TI
Manufacturer:
TI
ManyChip's Part#:
MC6616504
Category:
DC to DC Converter
Package:
QFN-47
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMZ31506RUQR DC-DC POL Converter, Adjustable, Buck, 780kHz, 600mV to 5.5V out, 6A, QFN-47
Stock Locations:
Availability:
307 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 44.97

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 6A 1.6V - 14.5V Input

Show

LMZ31506RUQR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	47 Pin
Case/Package	QFN-47
Number of Outputs	1 Output
Output Voltage	0.6V ~ 5.5V
Output Current	6 A
Number of Regulated Outputs	1 Output
Switching Frequency	780 kHz
Topology	Buck
Input Voltage (Max)	14.5 V
Input Voltage (Min)	2.95 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	600 mV
Output Current (Max)	6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.95V ~ 14.5V
	Show
Size-Length	15 mm
Size-Width	9 mm
Size-Height	2.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
