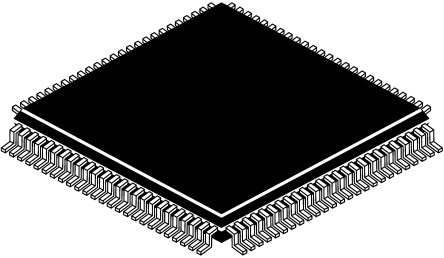

Image is for your reference only,please check specifications for details
- LPC2364FBD100 - NXP
-
Manufacturer:NXP
-
ManyChip's Part#:MC23374973
-
Category:Microcontroller, MCU IC
-
Package:LQFP-100
-
Datasheet:Datasheet 3D Model
-
Description:Single-chip 16Bit/32Bit microcontrollers; up to 512KB flash with ISP/IAP, Ethernet, USB 2.0, CAN, and 10Bit ADC/DAC
-
Stock Locations:
-
Availability:296 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.21
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General description
- The LPC2364/65/66/67/68 microcontrollers are based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with up to 512 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical performance in interrupt service routines and DSP algorithms, this increases performance up to 30 % over Thumb mode. For critical code size applications, the alternative 16-bit Thumb mode reducescode by more than 30 % with minimal performance penalty.
- Applications
- Industrial control
- Medical systems
- Protocol converter
- Communications
LPC2364FBD100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP-100 |
| Supply Voltage (DC) | 3.00V (min) |
| Operating Voltage | 3V ~ 3.6V |
| Clock Speed | 72 MHz |
| RAM Memory Size | 34 KB |
| Number of Bits | 32 Bit |
| FLASH Memory Size | 128 KB |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 14.1 mm |
| Size-Width | 14.1 mm |
| Size-Height | 1.45 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
