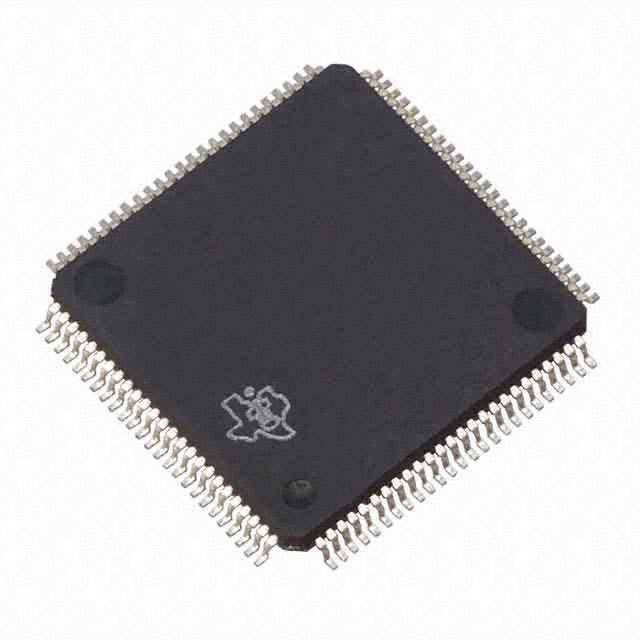

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- description
- The Texas Instruments (TI™) TMS320C206‡ and TMS320LC206‡ digital signal processors (DSPs) are fabricated with static CMOS integrated-circuit technology. The architectural design is based upon that of the TMS320C20x series and is optimized for low-power operation. The combination of advanced Harvard architecture, on-chip peripherals, on-chip memory, and a highly specialized instruction set is the basis of the operational flexibility and speed of the ’C206.
- • High-Performance Static CMOS Technology
- • Includes the ’320C2xLP Core CPU
- • TMS320C206, TMS320LC206 are Members of the ’C20x/’C2000 Platform Which Also Includes the TMS320C203/LC203 and TMS320F206 Devices
- • Instruction-Cycle Time 25 ns at 3.3 V
- • Source Code Compatible With TMS320C25 and other ’20x Devices
- • Upwardly Code-Compatible With TMS320C5x Devices
- • Four External Interrupts
- • TMS320C206, 5-V I/O (3.3-V core)
- • TMS320LC206, 3.3-V core and I/O
- • TMS320C206, TMS320LC206 Integrated Memory:
- − 544 × 16 Words of On-Chip Dual-Access Data RAM
- − 32K × 16 Words of On-Chip ROM
- − 4K × 16 Words of On-Chip Single-Access Program/Data RAM
- • 224K × 16-Bit Maximum Addressable External Memory Space
- − 64K Program
- − 64K Data
- − 64K Input/Output (I/O)
- − 32K Global
- • 32-Bit Arithmetic Logic Unit (ALU) Accumulator
- • 16 × 16-Bit Multiplier With a 32-Bit Product
- • Block Moves from Data and Program Space
- • TMS320C206, TMS320LC206 Peripherals:
- − On-Chip 20-Bit Timer
- − On-Chip Software-Programmable Wait-State (0 to 7) Generator
- − On-Chip Oscillator
- − On-Chip Phase-Locked Loop (PLL)
- − Six General-Purpose I/O Pins
- − Full-Duplex Asynchronous Serial Port (UART)
- − Enhanced Synchronous Serial Port (ESSP) With Four-Level-Deep FIFOs
- • Input Clock Options
- − Options: Multiply-by-One, -Two, or -Four, and Divide-by-Two (x1, x2, x4, and ÷2)
- • Support of Hardware Wait States
- • Power Down IDLE Mode
- • IEEE 1149.1†-Compatible Scan-Based Emulation
- • TMS320C206, TMS320LC206 100-Pin PZ Package, Small Thin Quad Flat Package (TQFP)
- • Industrial Temperature Version Planned, (− 40°C to 85°C)
TMS320LC206PZA80 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP-100 |
| Frequency | 80 MHz |
| Supply Voltage (DC) | 3.30 V, 5.25 V (max) |
| Clock Speed | 80 MHz |
| RAM Memory Size | 9280 B |
| Number of Bits | 16 Bit |
| Number of I/O Pins | 6 IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | 3A991.a.2 |
