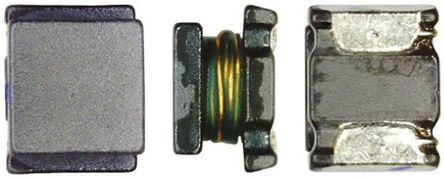

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 470µH Unshielded Wirewound Inductor 60mA 24.7Ohm Max Nonstandard
LQH32CN471K23L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Current Rating | 60 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 470 µH |
| Self Resonant Frequency | 5 MHz |
| Q-Factor | 40.0 |
| Part Family | LQH |
| Resistance | 19.0 Ω |
| Resistance Tolerance | ±30 % |
| Resonant Frequency | 5.00 MHz |
| Shielding | No |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 kHz |
| DC Resistance (DCR) | ≤24.7 Ω |
| Current Rating (DC) | 60 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±10 % |
| Resistance (DC Max) | 19 Ω |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 2.5 mm |
| Size-Height | 2 mm |
| Weight | 0.05 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
