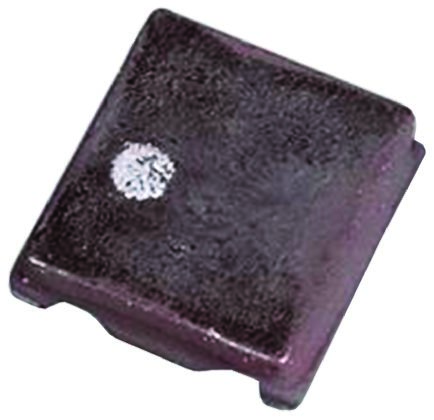

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2.2µH Shielded Wirewound Inductor 1.6A 87.6mOhm Max 1212 (3030 Metric)
LQH3NPN2R2NM0L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 1212 |
| Current Rating | 1.6 A |
| Capacitance Tolerance | ±30 % |
| Inductance | 2.2 µH |
| Self Resonant Frequency | 90 MHz |
| Part Family | LQH |
| Inductance Tolerance | ±30 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤87.6 mΩ |
| Current Rating (DC) | 1.25 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.073 Ω |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 1.4 mm |
| Weight | 0.077 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 1000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
