Description

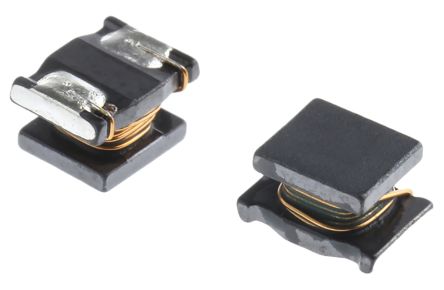

- The LQH43CN100K03L is a wirewound SMD Chip Inductor/Coil with 1812 case. The wirewound inductor consists of a copper wire spirally wound around the ferrite core. The wirewound inductor for power circuits, coated with various resins over the copper wirewound around the ferrite core. The purpose of the coating resin is to improve the strength of the product. The merits of using a wirewound product are demonstrated when used in large current areas and high inductance areas.
- -40 to 85°C Operating temperature
LQH43CN100K03L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Current Rating | 650 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 10 µH |
| Self Resonant Frequency | 23 MHz |
| Part Family | LQH |
| Resistance | 240 mΩ |
| Resonant Frequency | 23.0 MHz |
| Shielding | No |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤240 mΩ |
| Current Rating (DC) | 650 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.24 Ω |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 3.2 mm |
| Size-Height | 2.6 mm |
| Weight | 120 mg |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 500 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
