Description

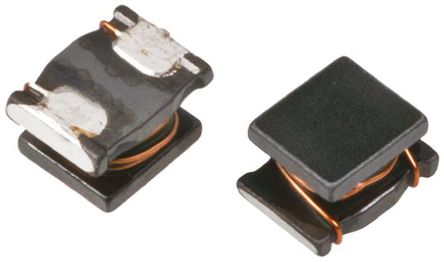

- LQH43C Series LQH43C series consists of miniature chip inductors with low DC resistance, high current capacity, and high impedance characteristics. It is suitable for use as choke coils in DC power supply circuits. Features 1. Various inductance ranges are available. 2. The series exhibits low voltage drops and small change in inductance with respect to temperature rise and DC current level. This makes them excellent to use as power supply line choke coils. 3. Small size 4.5x3.2mm and realized low height 2.8mm max. 4. The series has excellent solder heat resistance. Both flow and reflow soldering methods can be employed.
LQH43CN330K03L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Current Rating | 310 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 33 µH |
| Self Resonant Frequency | 12 MHz |
| Part Family | LQH |
| Shielding | No |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤1 Ω |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 1 Ω |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 3.2 mm |
| Size-Height | 2.6 mm |
| Weight | 120 mg |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 500 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
