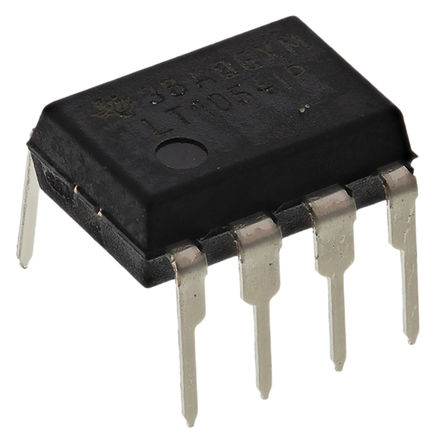

Image is for your reference only,please check specifications for details

LT1054IP - TI
Manufacturer:
TI
ManyChip's Part#:
MC18767852
Category:
DC to DC Converter
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
Buck-Boost Charge Pump Regulator Switched-Capacitor Voltage Converters With Regulator Charge Pump INV/STPUP -5V 100mA 8Pin PDIP Tube
Stock Locations:
Availability:
222 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LT1054IP is a bipolar switched-capacitor charge-pump Voltage Converter with regulator. It provides higher output current and significantly lower voltage losses than previously available converters. An adaptive-switch drive scheme optimizes efficiency over a wide range of output currents. Total voltage drop at 100mA output current typically is 1.1V. This applies to the full supply-voltage range of 3.5 to 15V. Quiescent current typically is 2.5mA. It also provides regulation, a feature previously not available in switched-capacitor voltage converters. By adding an external resistive divider, a regulated output can be obtained. This output is regulated against changes in both input voltage and output current. It can also shut down by grounding the feedback terminal. Supply current in shutdown typically is 100µA. The internal oscillator of the LT1054 runs at a nominal frequency of 25kHz.
Reference and error amplifier for regulation
External shutdown
External oscillator synchronization
Devices can be paralleled
Pin-to-pin compatible with the LTC1044/7660
Green product and no Sb/Br

Show

LT1054IP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Number of Outputs	1 Output
Output Voltage	-5.00 V
Output Current	100 mA
Supply Current	5 mA
Number of Positions	8 Position
Quiescent Current	2.50 mA
Number of Regulated Outputs	1 Output
Switching Frequency	25 kHz
Input Voltage (Max)	15 V
Input Voltage (Min)	3.5 V
Output Voltage (Max)	26.4 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.5V ~ 15V
Input Voltage	3.5V ~ 15V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
