Description

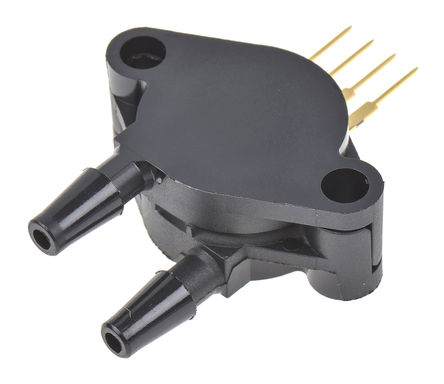

The MPX2100DP is a dual-port on-chip temperature compensated and calibrated silicon Pressure Sensor. The MPX2100 series device silicon piezoresistive pressure sensor provides a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration an temperature compensation.
Ratiometric to supply voltage
Available in differential configuration

Show

MPX2100DP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Supply Voltage (DC)	10.0V (min)
Halogen Free Status	Not Halogen Free
Output Voltage	≤40.0 mV
Supply Current	6.00 mA
Number of Positions	4 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.25 %
Supply Voltage	10 V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	10 V
	Show
Size-Length	29.85 mm
Size-Width	11.05 mm
Size-Height	29.34 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
