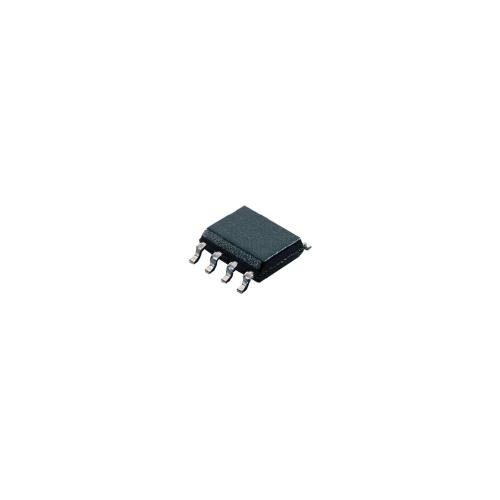

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The LT1355/LT1356 are dual and quad low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500Ω load to ±12.5V with ±15V supplies and a 150Ω load to ±3V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer applications.
FEATURES
■ 12MHz Gain Bandwidth
■ 400V/µs Slew Rate
■ 1.25mA Maximum Supply Current per Amplifier
■ Unity-Gain Stable
■ C-Load™ Op Amp Drives All Capacitive Loads
■ 10nV/√Hz Input Noise Voltage
■ 800µV Maximum Input Offset Voltage
■ 300nA Maximum Input Bias Current
■ 70nA Maximum Input Offset Current
■ 12V/mV Minimum DC Gain, RL=1k
■ 230ns Settling Time to 0.1%, 10V Step
■ 280ns Settling Time to 0.01%, 10V Step
■ ±12.5V Minimum Output Swing into 500Ω
■ ±3V Minimum Output Swing into 150Ω
■ Specified at ±2.5V, ±5V, and ±15V
