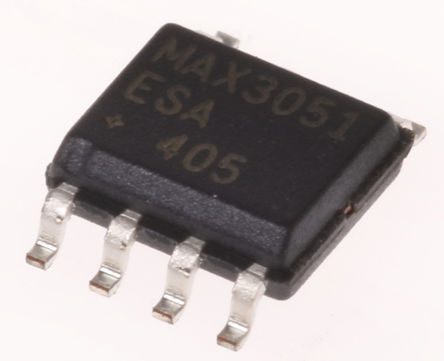

Image is for your reference only,please check specifications for details
- MAX3051ESA+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC12832532
-
Category:CAN IC, Controller Area Network
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:CAN 1Mbps Shutdown/Standby 3.3V 8Pin SOIC N
-
Stock Locations:
-
Availability:2,232 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.21
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MAX3051ESA+ is a low-supply-current CAN Transceiver, interfaces between the CAN protocol controller and the physical wires of the bus lines in a controller area network (CAN). It provides differential transmit capability to the bus and differential receive capability to the CAN controller. It is primarily intended for +3.3V single-supply applications that do not require the stringent fault protection specified by the automotive industry (ISO 11898). The MAX3051ESA+ features four different modes of operation - high-speed, slope-control, standby and shutdown mode. High-speed mode allows data rates up to 1Mbps. The slope-control mode can be used to program the slew rate of the transmitter for data rates of up to 500kbps. This reduces the effects of EMI, thus allowing the use of unshielded twisted or parallel cable. In standby mode, the transmitter is shut off and the receiver is pulled high, placing the transceiver in low-current mode.
- Use 3V Microcontroller with Same LDO, Low +3.3V Single-supply Operation
- Common Mode Range Exceeds ISO11898 Standard (-2 to +7V)
- Wide -7 to +12V Common-mode Range
- Flexible Operation Optimizes Performance and Power Consumption for Reduced Thermal Dissipation
- Four Operating Modes
- High-speed Operation up to 1Mbps
- Slope-control Mode to Reduce EMI (up to 500kbps)
- Standby Mode
- Low-current Shutdown Mode
- Robust Protection Increases System Reliability
- ±12kV Human Body Model ESD Protection
- Thermal Shutdown
- Current Limiting
- Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.
MAX3051ESA+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 3.13V (min) |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Data Rate | 1.00 Mbps |
| Slew Rate | 12.5 V/μs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.14V ~ 3.47V |
| Supply Voltage (Max) | 3.465 V |
| Supply Voltage (Min) | 3.135 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2013/06/20 |
| ECCN Code | EAR99 |
