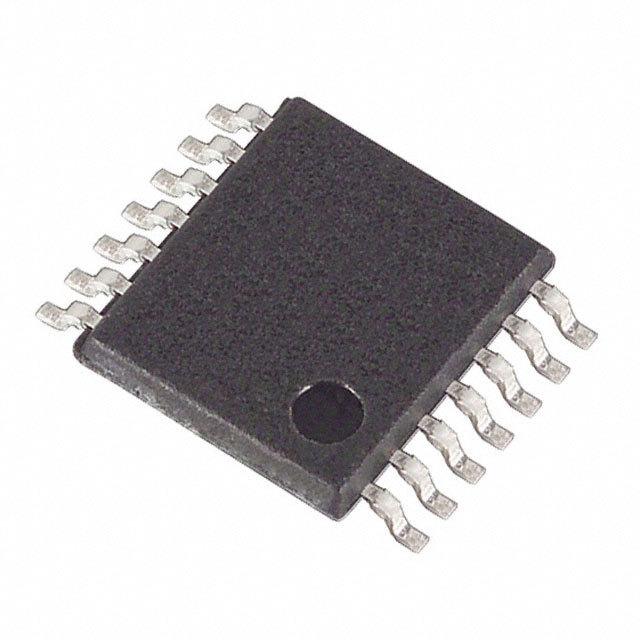

Image is for your reference only,please check specifications for details

MAX31856MUD+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC2291500
Category:
Temperature Sensor
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
MAXIM INTEGRATED PRODUCTS MAX31856MUD+ Temperature Sensor IC, Precision, Digital, ± 2℃, -55℃, 125℃, TSSOP, 14Pins
Stock Locations:
Availability:
324 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.95

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX31856MUD+ is a precision thermocouple to digital converter with linearization in 14 pin TSSOP package. The MAX31856 performs cold-junction compensation and digitizes the signal from any type of thermocouple. The output data is formatted in degrees Celsius. This converter resolves temperatures to 0.0078125°C, allows readings as high as +1800°C and as low as -210°C (depending on thermocouple type) and exhibits thermocouple voltage measurement accuracy of ±0.15%. The thermocouple inputs are protected against overvoltage conditions up to ±45V. A lookup table (LUT) stores linearity correction data for several types of thermocouples (K, J, N, R, S, T, E and B). Line frequency filtering of 50Hz and 60Hz is included, as is thermocouple fault detection. A SPI-compatible interface allows selection of thermocouple type and setup of the conversion and fault detection processes.
Supply voltage range is 3V to 3.6V
Operating temperature range from -55°C to 125°C
Includes automatic linearization correction for 8 thermocouple types
19bit, 0.0078125°C thermocouple temperature resolution
±0.7°C (max, -20°C to +85°C) cold-junction accuracy
Detects open thermocouples, over and undertemperature fault detection
