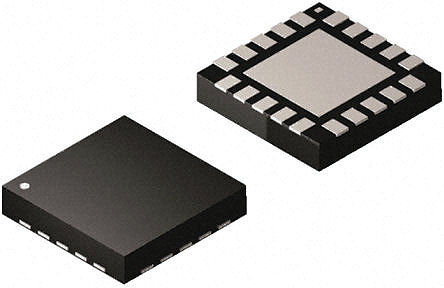

MAX31865ATP+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC1080026
Category:
Temperature Sensor
Package:
TQFN-20
Datasheet:
Datasheet 3D Model
Description:
MAXIM INTEGRATED PRODUCTS MAX31865ATP+ Temperature Sensor IC, RTD, Digital, ± 0.5℃, -40℃, 125℃, TQFN, 20Pins
Stock Locations:
Availability:
316 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.34

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX31865ATP+ is a RTD to digital converter in 20 pin TQFN package. It is an easy to use resistance to digital converter optimized for platinum resistance temperature detectors (RTDs). An external resistor sets the sensitivity for RTD being used and a precision delta sigma ADC converts the ratio of the RTD resistance to reference resistance into digital form. Inputs are protected against overvoltage faults as large as ±45V. Programmable detection of RTD and cable open and short conditions is included. It is used in industrial equipment and instrumentation.
Supply voltage range is 3V to 3.6V
Operating temperature range from -40°C to 125°C, high accuracy facilitates meeting error budgets
Integration lowers system cost, simplifies design efforts and reduces design cycle time
Simple conversion of platinum RTD resistance to digital value, fully differential VREF inputs
Handles 100 ohm to 1Kohm (at 0°C) platinum RTDs (PT100 to PT1000), 21ms (max) conversion time
Compatible with 2-wire, 3-wire and 4-wire sensor connections, SPI-compatible interface
Fault detection (open RTD element, RTD shorted to out of range voltage or short across RTD element)
15bit ADC resolution, nominal temperature resolution 0.03125NC (varies due to RTD nonlinearity)
Total accuracy over all operating conditions, 0.5NC (0.05% of full scale) max
Integrated fault detection increases system reliability, ±45V input protection
