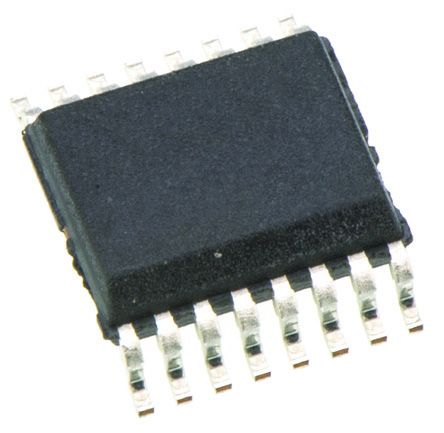

MAX3221CDB - TI
Manufacturer:
TI
ManyChip's Part#:
MC21780553
Category:
Interface IC, Interface Controller
Package:
SSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS MAX3221CDB RS232 Transceiver IC, 1 Driver, 250Kbps, 3V to 5.5V, SSOP-16
Stock Locations:
Availability:
61 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.7

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The MAX3221 consists of one line driver, one line receiver, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. These devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.
RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
Operates With 3-V to 5.5-V VCC Supply
Operates Up To 250 kbit/s
One Driver and One Receiver
Low Standby Current...1 µA Typical
External Capacitors...4 ×0.1 µF
Accepts 5-V Logic Input With 3.3-V Supply
Alternative High-Speed Pin-Compatible Device (1 Mbit/s)
− SNx5C3221
Auto-Powerdown Feature Automatically Disables Drivers for Power Savings
Applications
− Battery-Powered, Hand-Held, and Portable Equipment
− PDAs and Palmtop PCs
− Notebooks, Subnotebooks, and Laptops
− Digital Cameras
− Mobile Phones and Wireless Devices

Show

MAX3221CDB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SSOP-16
Supply Voltage (DC)	3.30 V, 5.00 V
Supply Current	1 mA
Number of Positions	16 Position
Data Rate	250 kbps
Drivers Per Package	1
Output Voltage (Max)	5 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	6.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
