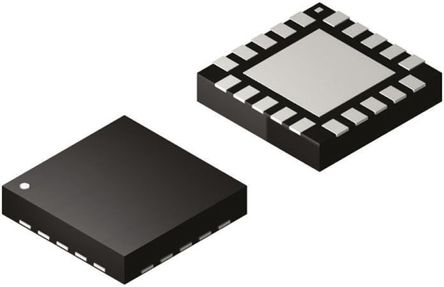

Image is for your reference only,please check specifications for details
- MAX4820ETP+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC42077372
-
Category:FET Driver
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Maxim MAX4820ETP+, MOSFET Power Driver 70mA, 2.3 → 5.5V, Non-Inverting, 20Pin TQFN
-
Stock Locations:
-
Availability:279 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.59
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MAX4820ETP+ is an 8-channel, cascadable relay driver with serial interface in 20 pin TQFN package. It offer built-in kickback protection and drive +3.3V/+5V nonlatching or dual-coil-latching relays. Device is especially useful when driving +3V relays. Each independent open-drain output features a 2ohm on-resistance and sink 70mA (min) of load current, it consume less than 50µA (max) quiescent current and have 1µA output off-leakage current. Built-in hysteresis (schmitt trigger) on all digital inputs allows this device to be used with slow rising and falling signals from optocouplers or RC power-up initialization circuits. It is used in central office, ATE, DSL, ADSL line cards and E1/T1 redundancy.
- Supply voltage range is 2.3V to 5.5V
- Operating temperature range from -40°C to 85°C
- 8 independent output channels
- SPI-/QSPI-/MICROWIRE compatible 8bit serial interface
- SET(complementary) function to turn on all outputs simultaneously
- RESET (complementary) function to turn off all outputs simultaneously
- Turn-on time and turn-off time of 1µs
- Thermal shutdown of 160°C
- Data set time is 100ns
- Serial digital output for daisy chaining
MAX4820ETP+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TQFN-20 |
| Supply Voltage (DC) | 2.30V (min) |
| Number of Outputs | 8 Output |
| Output Current | 70 mA |
| Number of Positions | 20 Position |
| Power Dissipation | 1.35 W |
| Rise Time | 200 ns |
| Output Current (Max) | 70 mA |
| Fall Time | 200 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.3 V |
| Show | |
| Size-Length | 4.1 mm |
| Size-Width | 4.1 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
