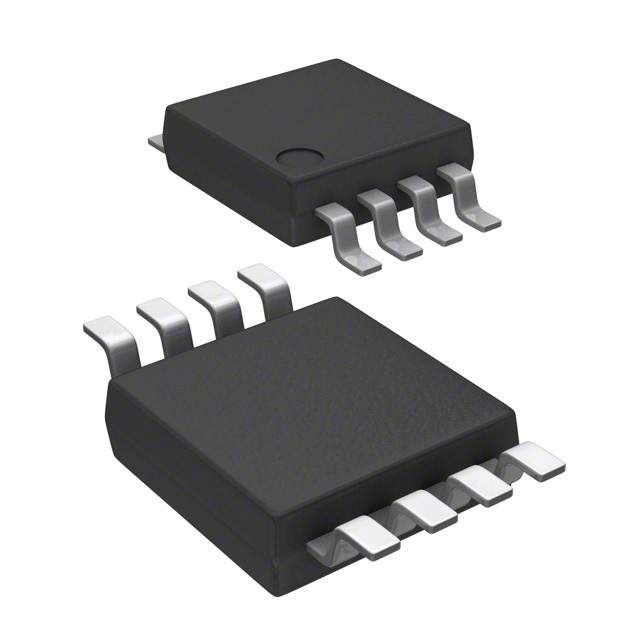

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The MAX891L/MAX892L smart, low-voltage, P-channel, MOSFET power switches are intended for high-side load-switching applications. These switches operate with inputs from 2.7V to 5.5V, making them ideal for both 3V and 5V systems. Internal current-limiting circuitry protects the input supply against overload. Thermal overload protection limits power dissipation and junction temperatures.
The MAX891L/MAX892L’s maximum current limits are 500mA and 250mA, respectively. The current limit through the switch is programmed with a resistor from SET to ground. When the switch is on, the quiescent supply current is a low 13µA. When the switch is off, the quiescent current decreases to 0.1µA.
The MAX891L/MAX892L are available in 8-pin µMAX packages.
Features
♦ Ultra-Small µMAX Package—Only 1.11mm High
♦ 2.7V to 5.5V Input Range
♦ Programmable Current Limit
♦ Low 13µA Quiescent Current at VIN = 3.3V, 0.1µA Switch Off
♦ Thermal Shutdown
♦ FAULT Indicator Output
♦ On-Resistances:
0.12Ω (MAX891L)
0.25Ω (MAX892L)
Applications
PCMCIA Slots
Access Bus Slots
Portable Equipment
