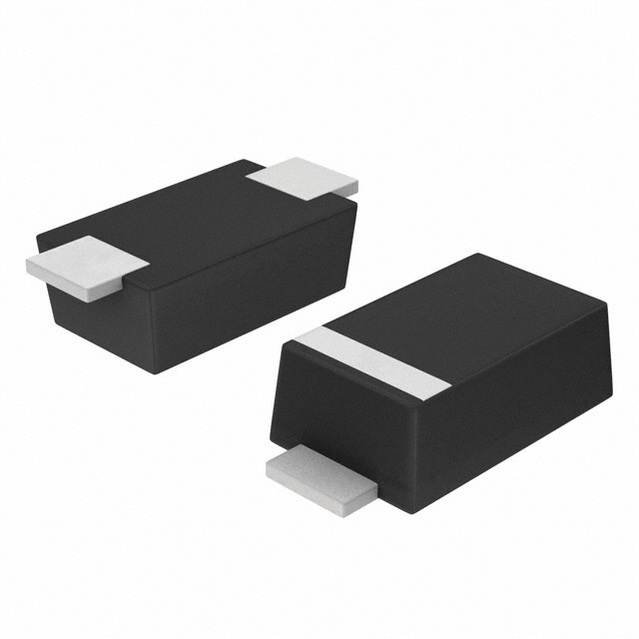

Image is for your reference only,please check specifications for details
Updated at 19/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Schottky 20V 1A Surface Mount SOD-123L
MBR120ESFT1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | SOD-123F |
| Voltage Rating (DC) | 20.0 V |
| Current Rating | 1.00 A |
| Output Current | ≤1.00 A |
| Forward Voltage | 530mV @1A |
| Polarity | Standard |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 2.7 mm |
| Size-Width | 1.65 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
