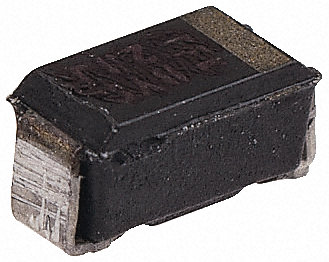

MBRA130LT3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5513465
Category:
Schottky Diode
Package:
DO-214AC
Datasheet:
Datasheet 3D Model
Description:
Diode; Schottky Barrier; Vr 30V; If 1A; Pkg SMA; Vf 0.41V; Tj +125℃; Cs 25A; Ir 25mA
Stock Locations:
Availability:
15,731 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.19

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBRA130LT3G is a surface-mount Schottky Power Rectifier with moulded epoxy case. This device employs the Schottky barrier principle in a metal-to-silicon power rectifier. It features epitaxial construction with oxide passivation and metal overlay contact. It is ideally suited for low voltage, high frequency switching power supplies, free-wheeling diodes and polarity protection diodes.
Cathode lead indicated by either notch in plastic body or polarity band
All external surfaces corrosion-resistant
Compact package with J-bend leads ideal for automated handling
Highly stable oxide-passivated junction
Guard-ring for overvoltage protection
Low forward voltage drop
AEC-Q101 qualified and PPAP capable
UL94V-0 Flammability rating

Show

MBRA130LT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Voltage Rating (DC)	30.0 V
Current Rating	1 A
Halogen Free Status	Halogen Free
Output Current	1 A
Number of Positions	2 Position
Forward Voltage	410mV @1A
Polarity	Standard
Thermal Resistance	35℃/W (RθJL)
Forward Current	1 A
Max Forward Surge Current (Ifsm)	25 A
Maximum Forward Voltage (Max)	410 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	125 ℃
	Show
Size-Length	4.57 mm
Size-Width	2.6 mm
Size-Height	2 mm
Weight	0.004535924 kg
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
