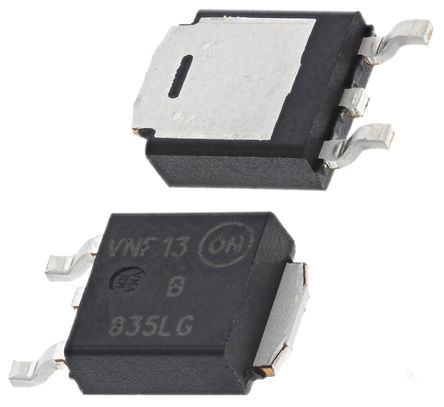

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBRD835LT4G is a SWITCHMODE™ DPAK surface-mount Power Rectifier with moulded epoxy case. It uses the Schottky barrier principle with a proprietary barrier metal, is designed for use as output rectifiers, free-wheeling, protection and steering diodes in switching power supplies, inverters and other inductive switching circuits.
All external surfaces corrosion-resistant
Low forward voltage
UL94V-0 Flammability rating
Compact size
Lead formed for surface-mount
AEC-Q101 qualified and PPAP capable

Show

MBRD835LT4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	35.0 V
Current Rating	8.00 A
Halogen Free Status	Halogen Free
Output Current	≤8.00 A
Number of Positions	3 Position
Forward Voltage	0.51 V
Polarity	Standard
Thermal Resistance	2.8℃/W (RθJC)
Forward Current	8 A
Max Forward Surge Current (Ifsm)	75 A
Maximum Forward Voltage (Max)	510 mV
Forward Current (Max)	8 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	150 ℃
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
