Description

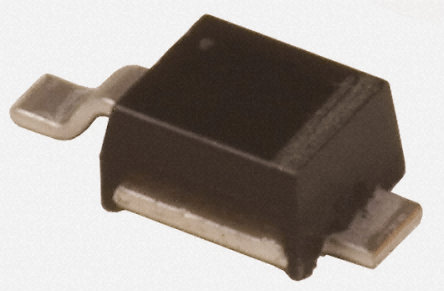

The MBRM120ET1G is a surface-mount Schottky Power Rectifier with moulded epoxy case. The Schottky POWERMITE® employs the Schottky barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop-reverse current trade-off. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface-mount Rectifier. With its unique heat-sink design, the POWERMITE® has the same thermal performance as the SMA while being 50% smaller in footprint area and delivering one of the lowest height profiles,  1.1mm in the industry. Because of its small size, it is ideal for use in portable and battery powered products. Typical applications are AC-DC and DC-DC converters, reverse battery protection and O-ring of multiple supply voltages and any other application where performance and size are critical.
Low-profile
Low VF provides higher-efficiency and extends battery life
Low thermal resistance with direct thermal path of die on exposed cathode heat-sink
AEC-Q101 Qualified and PPAP Capable

Show

MBRM120ET1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Voltage Rating (DC)	20.0 V
Current Rating	1.00 A
Halogen Free Status	Halogen Free
Output Current	≤1.00 A
Number of Positions	2 Position
Forward Voltage	530mV @1A
Polarity	Standard
Thermal Resistance	23℃/W (RθJL)
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	595 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	2.05 mm
Size-Width	2.18 mm
Size-Height	1.15 mm
Operating Temperature	65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
