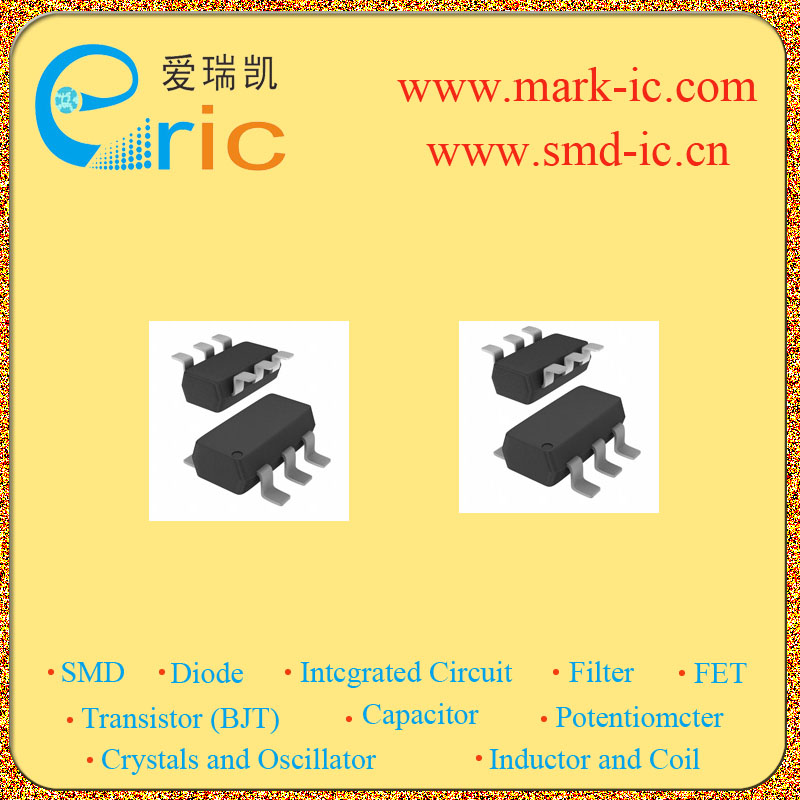

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MBT35200MT1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOP-6
Voltage Rating (DC)	-35.0 V
Current Rating	-2.00 A
Polarity	PNP
Power Dissipation	625 mW
Breakdown Voltage (Collector to Emitter)	35 V
Continuous Collector Current	2A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
HTS Code	8541290075
ECCN Code	EAR99
