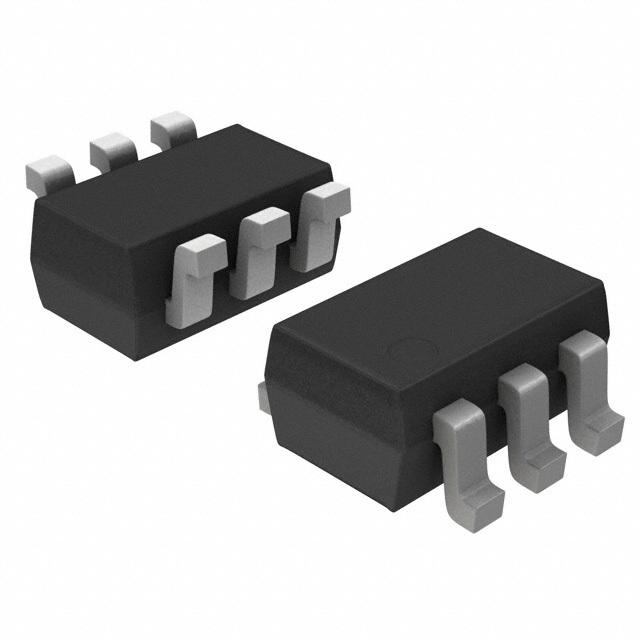

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Bipolar (BJT) Transistor Array 2 PNP (Dual) 40V 200mA 250MHz 150mW Surface Mount SC-88/SC70-6/SOT-363

Show

MBT3906DW1T1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SC-70-6
Voltage Rating (DC)	-40.0 V
Current Rating	-200 mA
Polarity	PNP
Power Dissipation	150 mW
Gain Bandwidth Product	250 MHz
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	0.2A
hFE Min	100 @10mA, 1V
Input Power (Max)	150 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
