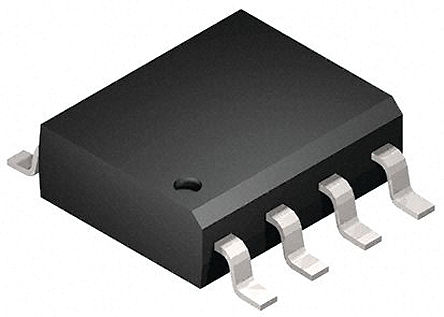

Image is for your reference only,please check specifications for details

MC100EL1648DG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5421763
Category:
Clock Chip, Timing IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Voltage Controlled Oscillator Amplifier -40℃ to 85℃ 8Pin SOIC N Tube
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.53

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC100EL1648DG is a voltage-controlled Oscillator Amplifier requires an external parallel tank circuit consisting of the inductor and capacitor. A varactor diode may be incorporated into the tank circuit to provide a voltage variable input for the oscillator (VCO). This device may also be used in many other applications requiring a fixed frequency clock. The MC100EL1648 is ideal in applications requiring a local oscillator, systems that include electronic test equipment and digital high-speed telecommunications. The MC100EL1648 is based on the VCO circuit topology of the MC1648. The MC100EL1648 uses advanced bipolar process technology which results in a design which can operate at an extended frequency range. The ECL output circuitry of the MC100EL1648 is not a traditional open emitter output structure and instead has an on-chip termination emitter resistor, RE, with a nominal value of 510R. This facilitates direct ac-coupling of the output signal into a transmission line.
6pF Typical input capacitance
19mA at 5VDC Low-power supply

Show

MC100EL1648DG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	1.1 GHz
Supply Voltage (DC)	4.20V (min)
Number of Outputs	1 Output
Supply Current	19 mA
Number of Positions	8 Position
Load Capacitance	6 pF
Input Current	19.0 mA
Duty Cycle	50 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.2 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
