Description

Quad Analog Switch/Quad Multiplexer
The MC14016B quad bilateral switch is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. Each MC14016B consists of four independent switches capable of controlling either digital or analog signals. The quad bilateral switch is used in signal gating, chopper, modulator, demodulator and CMOS logic implementation.
Features
•Diode Protection on All Inputs
•Supply Voltage Range = 3.0 Vdc to 18 Vdc
•Linearized Transfer Characteristics
•Low Noise −12 nV/√Cycle, f ≥1.0 kHz typical
•Pin−for−Pin Replacements for CD4016B, CD4066B (Note improved transfer characteristic design causes more parasitic coupling capacitance than CD4016)
•For Lower RON, Use The HC4016 High−Speed CMOS Device or The MC14066B
•This Device Has Inputs and Outputs Which Do Not Have ESD Protection. Antistatic Precautions Must Be Taken.
•These are Pb−Free Devices

Show

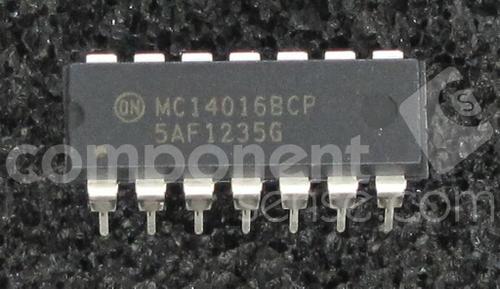

MC14016BCPG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Voltage (DC)	18.0 V
Number of Outputs	4 Output
Contacts Type	SPST
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Power Dissipation	500 mW
Number of Gates	4 Gate
Bandwidth	54.0 MHz
Breakdown Voltage (Collector to Emitter)	-100 V
Number of Inputs	4 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	37 MHz
Power Dissipation (Max)	500 mW
	Show
Size-Length	19.55 mm
Size-Width	6.6 mm
Size-Height	3.68 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
