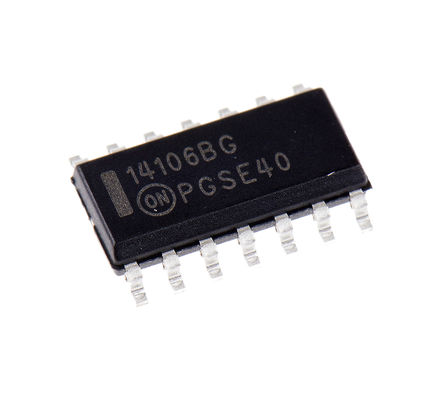

Image is for your reference only,please check specifications for details

MC14106BDG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2026004
Category:
Logic Control, Logic Gate IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC14106BDG Inverter, Schmitt Trigger, MC14106, 1Input, 8.8mA, 3V to 18V, SOIC-14
Stock Locations:
Availability:
189 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.82

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC14106BDG is a Hex Schmitt-trigger and it is constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. This device find primary use where low power dissipation and/or high noise immunity is desired. The MC14106B may be used in place of the MC14069UB Hex inverter for enhanced noise immunity or to "square up" slowly changing waveforms. This device contains protection circuitry to guard against damage due to high static voltages or electric fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, Vin and Vout should be constrained to the range VSS
Increased hysteresis voltage over the MC14584B
Capable of driving two low-power TTL loads or one low-power schottky TTL load
Pin-for-Pin replacement for CD40106B and MM74C14
Can be used to replace the MC14584B or MC14069UB

Show

MC14106BDG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	3.00V (min)
Capacitance	7.5 pF
Halogen Free Status	Halogen Free
Output Current	8.8 mA
Number of Circuits	6 Circuit
Number of Positions	14 Position
Power Dissipation	500 mW
Quiescent Current	1 µA
Number of Gates	6 Gate
Number of Inputs	6 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
