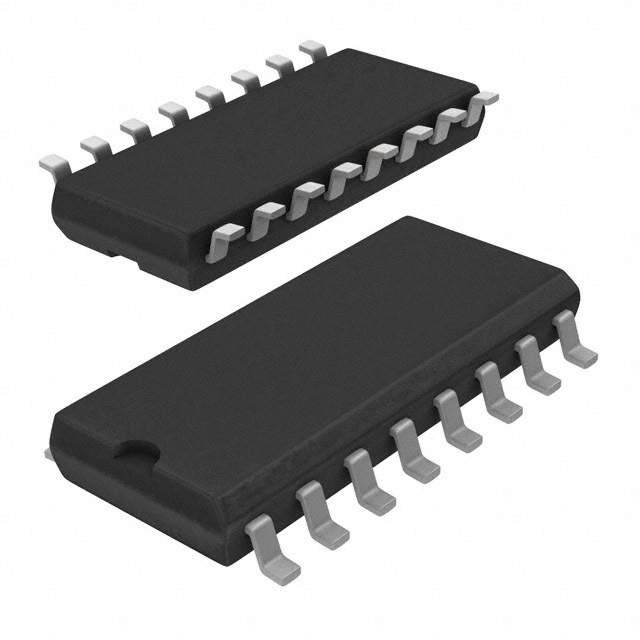

Image is for your reference only,please check specifications for details
- MC14536BFELG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC161729152
-
Category:Timer IC
-
Package:SOEIAJ-16
-
Datasheet:Datasheet 3D Model
-
Description:Программируемый таймер, одинарный, от -55°C до 125°C, автомобильный, 16-выводной SO EIAJ, лента/катушка
-
Stock Locations:
-
Availability:263 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.7
Updated at 20/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Programmable Timer IC 2MHz 16-SOEIAJ
MC14536BFELG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOEIAJ-16 |
| Frequency | 2 MHz |
| Supply Current | 15 µA |
| Power Dissipation | 500 mW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500 mW |
| Supply Voltage | 3V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 5.45 mm |
| Size-Height | 1.85 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
