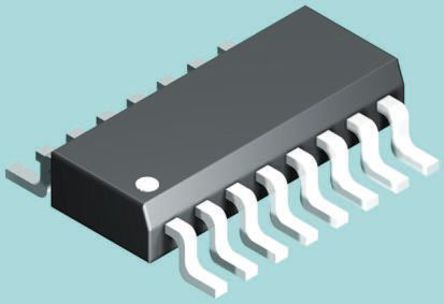

- MC14538BDR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC671181
-
Category:Flip Flop IC
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:Monostable Multivibrator, MC14538, 300ns, 8.8mA, 3V to 18V, SOIC-16
-
Stock Locations:
-
Availability:9,500 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.5
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MC14538B is a dual, retriggerable, resettable monostable multivibrator. It may be triggered from either edge of an input pulse, and produces an accurate output pulse over a wide range of widths, the duration and accuracy of which are determined by the external timing components, CX and RX. Output Pulse Width T = RX • CX (secs)
- RX = Ω
- CX = Farads
- Features
- • Unlimited Rise and Fall Time Allowed on the A Trigger Input
- • Pulse Width Range = 10 μs to 10 s
- • Latched Trigger Inputs
- • Separate Latched Reset Inputs
- • 3.0 Vdc to 18 Vdc Operational Limits
- • Triggerable from Positive (A Input) or Negative−Going Edge (B−Input)
- • Capable of Driving Two Low−Power TTL Loads or One Low−Power
- Schottky TTL Load Over the Rated Temperature Range
- • Pin−for−pin Compatible with MC14528B and CD4528B (CD4098)
- • Use the MC54/74HC4538A for Pulse Widths Less Than 10 μs with Supplies Up to 6 V
- • NLV Prefix for Automotive and Other Applications Requiring
- Unique Site and Control Change Requirements; AEC−Q100
- Qualified and PPAP Capable
- • These Devices are Pb−Free and are RoHS Compliant
MC14538BDR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 3.00V (min) |
| Capacitance | 7.5 pF |
| Halogen Free Status | Halogen Free |
| Output Current | 8.8 mA |
| Number of Positions | 16 Position |
| Power Dissipation | 500 mW |
| Quiescent Current | 5 µA |
| Rise Time | 40.0 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
