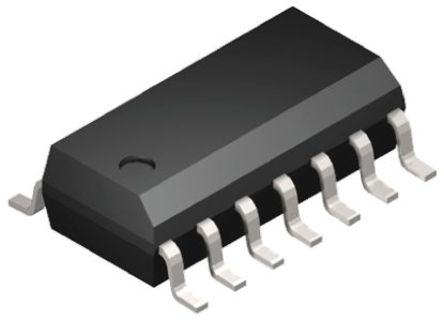

Image is for your reference only,please check specifications for details
- MC1496BDR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC11699058
-
Category:RF Module, IC, Accessory
-
Package:SOIC-14
-
Datasheet:Datasheet 3D Model
-
Description:MC1496BDR2G, Modulator/Demodulator Balanced 300MHz 14Pin SOIC
-
Stock Locations:
-
Availability:216 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.9
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **MC1496 Balanced Modulator/Demodulators**
- The output voltage of an MC1496 Balanced Modulator/Demodulator is a product of an input voltage (signal) and a switching function (carrier).
MC1496BDR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | SOIC-14 |
| Frequency | 300 MHz |
| Supply Voltage (DC) | 12.0 V |
| Halogen Free Status | Halogen Free |
| Supply Current | 2.00 mA |
| Number of Positions | 14 Position |
| Power Dissipation | 33 mW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 33 mW |
| Supply Voltage (Max) | 12 V |
| Show | |
| Size-Length | 8.75 mm |
| Size-Width | 4 mm |
| Size-Height | 1.75 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
