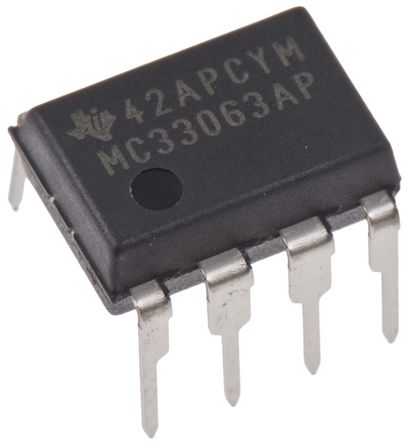

- MC33063AP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC3212333
-
Category:DC to DC Converter
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Inverting Regulator 1.5A Peak Boost/Buck/Inverting Switching Regulator Conv DC-DC 3V to 40V Inv/Step Up/Step Down Single-Out 1.25V to 40V 1.5A 8Pin PDIP Tube
-
Stock Locations:
-
Availability:250 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.64
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MC33063A and MC34063A devices are easy-to-use ICs containing all the primary circuitry needed for building simple DC-DC converters. These devices primarily consist of an internal temperature-compensated reference, a comparator, an oscillator, a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the devices require minimal external components to build converters in the boost, buck, and inverting topologies.
- The MC33063A device is characterized for operation from –40°C to 85°C, while the MC34063A device is characterized for operation from 0°C to 70°C.
MC33063AP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Supply Voltage (DC) | 40.0V (max) |
| Number of Outputs | 1 Output |
| Output Voltage | 1.25V ~ 40V |
| Output Current | 1.5 A |
| Number of Positions | 8 Position |
| Quiescent Current | 4.00 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 100 kHz |
| Topology | Buck, Boost |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 40 V |
| Output Voltage (Min) | 1.25 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3 V |
| Input Voltage | 3V ~ 40V |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
