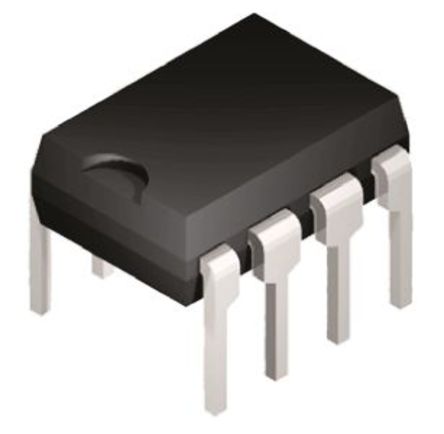

Image is for your reference only,please check specifications for details

MC33152PG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC9369390
Category:
FET Driver
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
MC33152 Series 20V 1.5A 100KΩ Through Hole Dual MOSFET Driver -PDIP-8
Stock Locations:
Availability:
205 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC33152PG is a dual non-inverting high speed MOSFET Driver designed for applications that require low current digital signals to drive large capacitive loads with high slew rates. This device feature low input current making them CMOS/LSTTL logic compatible, input hysteresis for fast output switching that is independent of input transition time and two high current totem pole outputs ideally suited for driving power MOSFETs. Also included is an under-voltage lockout with hysteresis to prevent system erratic operation at low supply voltages. Typical applications include switching power supplies, DC-to-DC converters and capacitor charge pump voltage doublers/inverters.
Two independent channels with 1.5A totem pole outputs
Output rise and fall times of 15ns with 1000pF load
CMOS/LSTTL compatible inputs with hysteresis
Under-voltage lockout with hysteresis
Low standby current consumption
Efficient high frequency operation
Enhanced system performance with common switching regulator control ICs

Show

MC33152PG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	18.0V (max)
Power Rating	1 W
Rise/Fall Time	36ns, 32ns
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Output Voltage	11.2 V
Output Current	1.5 A
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1 W
Rise Time	36 ns
Output Voltage (Max)	10.8 V
Output Current (Max)	1.5 A
Fall Time	32 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	6.1V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	6.1 V
	Show
Size-Length	10.02 mm
Size-Width	7.11 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
