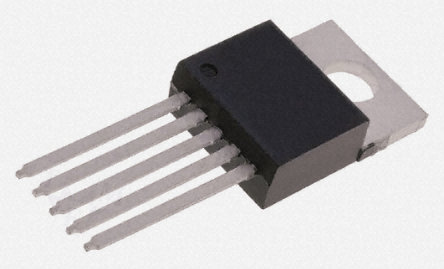

MC33167TG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC30364025
Category:
DC to DC Converter
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 7.5V to 40V Non-Inv/Inv/Step Up/Step Down Single-Out 5.05V 5A Automotive 5Pin(5+Tab) TO-220 Tube
Stock Locations:
Availability:
1,320 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.73

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC33167TG is a high-performance fixed frequency power Switching Regulator contains the primary functions required for DC-to-DC converters. This series was specifically designed to be incorporated in step-down and voltage-inverting configurations with a minimum number of external components and can also be used in step-up applications. This device consists of an internal temperature compensated reference, fixed frequency oscillator with on-chip timing components, latching pulse width modulator for single pulse metering, high gain error amplifier and a high current output switch. Protective features consist of cycle-by-cycle current limiting, undervoltage lockout and thermal shutdown. Also included is a low power standby mode that reduces power supply current to 36µA.
Fixed frequency oscillator (72kHz) with on-chip timing
Provides 5.05V output without external resistor divider
Precision 2% reference
Cycle-by-cycle current limiting
Undervoltage lockout with hysteresis
Internal thermal shutdown
Output switch current in excess of 5A
0 to 95% Output duty cycle

Show

MC33167TG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Frequency	72.0 kHz
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	5.05 V
Output Current	5 A
Number of Positions	5 Position
Switching Frequency	72 kHz
Topology	Step-Down
Input Voltage (Max)	40 V
Input Voltage (Min)	7.5 V
Output Voltage (Max)	40 V
Output Voltage (Min)	5 V
Output Current (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	7.5 V
Input Voltage	7.5V ~ 40V
	Show
Size-Length	10.24 mm
Size-Width	4.572 mm
Size-Height	9.347 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
