MC33204PG ON Semiconductor - Operational Amplifier, OP Amp IC

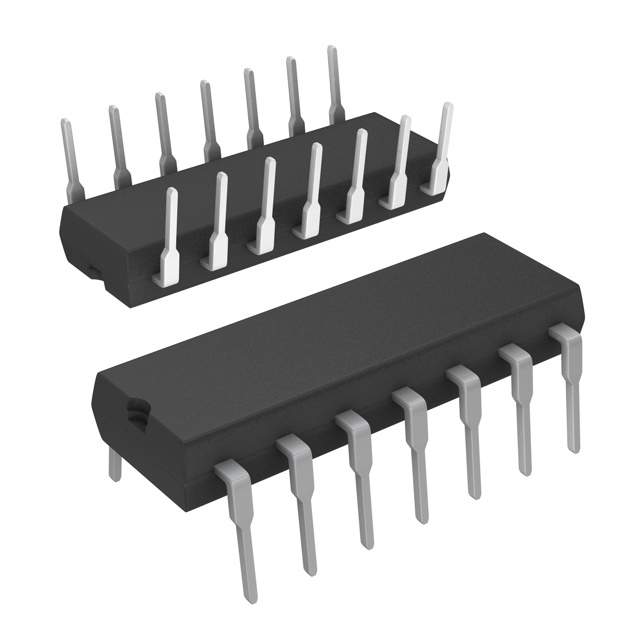

Image is for your reference only,please check specifications for details

MC33204PG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC10220150
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC33204PG Операционный усилитель, счетверенный, 2,2МГц, 4 усилителя, 1В/мкс, 1,8В до 12В, DIP, 14 выводов
Stock Locations:
Availability:
3,585 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.89

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC33201/2/4 family of op-amps provides rail-to-rail operation on both the input and output. The inputs can be driven as high as 200mV beyond the supply rails without phase reversal on the outputs, and the output can swing within 50 mV of each rail. This rail-to-rail operation enables the user to make full use of the supply voltage range available. It is designed to work at very low supply voltages ( +/- 0.9 V) yet can operate with a supply of up to +12V and ground. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a minimum. Also, the combination of low noise and distortion with a high slew rate and drive capability make this an ideal amplifier for audio applications.
Features
---
|
Low Voltage, Single Supply Operation (+1.8 V and Ground to +12 V and Ground)
Input Voltage Range Includes both Supply Rails
Output Voltage Swings within 50 mV of both Rails
No Phase Reversal on the Output for Over-driven Input Signals
High Output Current (ISC = 80 mA, Typ)
Low Supply Current (ID = 0.9 mA, Typ)
600 W Output Drive Capability
Extended Operating Temperature Ranges (-40° to +105°C and -55° to +125°C)
Typical Gain Bandwidth Product = 2.2 MHz

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Voltage (DC)	5.00 V
Supply Current	900 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	60 dB
Bandwidth	2.2 MHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	2.2 MHz
Input Offset Voltage	10 mV
Input Bias Current	80 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2.2 MHz
Minimum CMRR Range	60 dB
Supply Voltage	1.8V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	19.56 mm
Size-Width	6.6 mm
Size-Height	3.68 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
