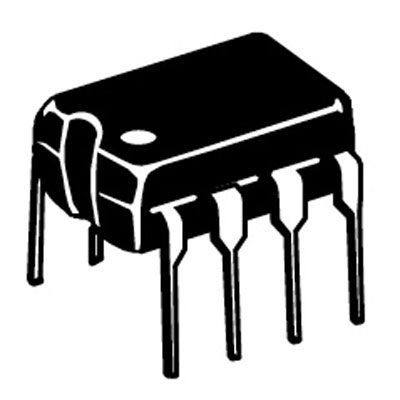

Image is for your reference only,please check specifications for details

MC34072PG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC40211025
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC34072PG Operational Amplifier, Dual, 2 Amplifier, 4.5MHz, 13V/µs, 3V to 44V, DIP, 8Pins
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.58

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC34072PG is a monolithic dual Operational Amplifier offers 4.5MHz of gain bandwidth product, 13V/µs slew rate and fast settling time without the use of JFET device technology. Although this series can be operated from split supplies, it is particularly suited for single supply operation, since the common-mode input voltage range includes ground potential (VEE). With a Darlington input stage, this series exhibits high input resistance, low input offset voltage and high gain. The all NPN output stage, characterized by no dead-band crossover distortion and large output voltage swing, provides high capacitance drive capability, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.
Output short-circuit protection
1.1µs to 0.1% Fast settling time
0 to 10000pF Large capacitance drive capability
0.02% Low total harmonic distortion
60° Excellent phase margin
12dB Excellent gain margin

Show

MC34072PG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Halogen Free Status	Halogen Free
Output Current	30 mA
Supply Current	1.9 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	97 dB
Bandwidth	4.5 MHz
Slew Rate	13.0 V/μs
Gain Bandwidth Product	4.5 MHz
Input Offset Voltage	7 mV
Input Bias Current	700 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	4.5 MHz
Minimum CMRR Range	70 dB
Supply Voltage	3V ~ 44V
Supply Voltage (Max)	44 V
Supply Voltage (Min)	3 V
	Show
Size-Width	6.35 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
